STMicroelectronics RF3L05150CB4 RF Power LDMOS Transistor
STMicroelectronics RF3L05150CB4 RF Power LDMOS Transistor is a 150W, 28/32V LDMOS FET designed for wide-band communication and ISM applications. The STM RF3L05150CB4 LDMOS Transistor is designed for applications with frequencies from HF to 1GHz. The RF3L05150CB4 can be used in class AB, B, or C for all typical modulation formats.
Features
- High efficiency and linear gain operations
- Integrated ESD protection
- In compliance with the european directive 2002/95/EC
- Large positive and negative gate-source voltage range for improved class C operation
Applications
- 2MHz to 30MHz HF or short wave communication
- 30MHz to 88MHz ground communication
- 118MHz to 140MHz Avionics
- 136MHz to 174MHz commercial ground communication
- 30MHz to 512MHz Jammer, ground/air communication
- HF to 1000MHz ISM - instrumentation

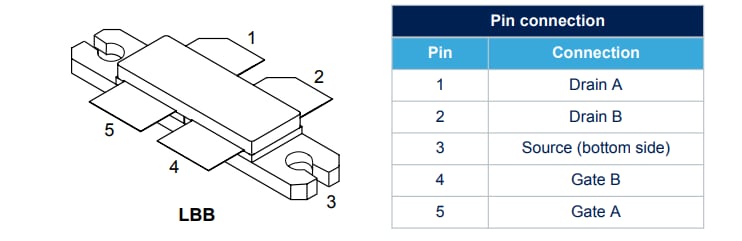

Pin connection

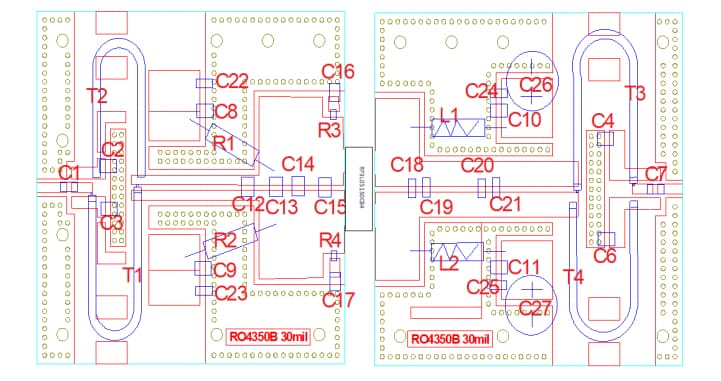

Test circuit layout
