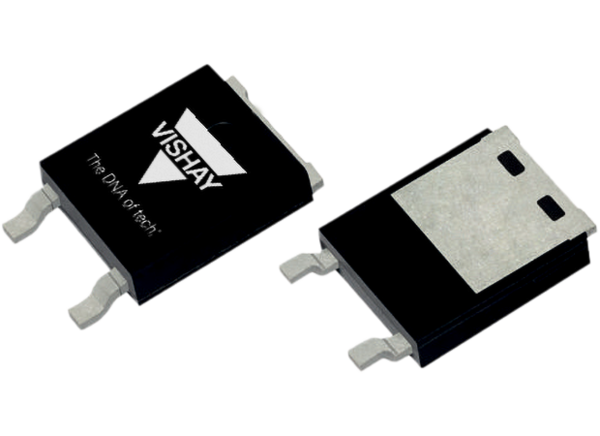

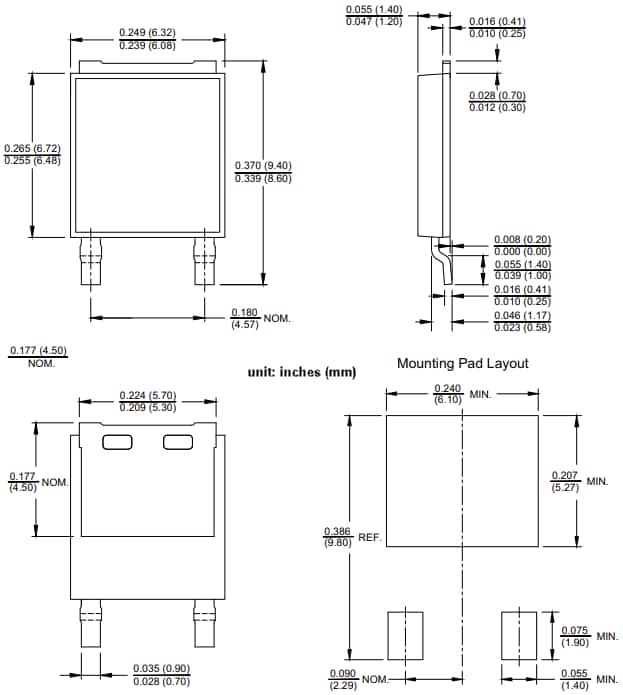

Vishay Semiconductors SE100PWTLK Surface-Mount Low VF Standard Rectifier

Vishay Semiconductors SE100PWTLK Surface-Mount Low VF Standard Rectifier features an 800V maximum repetitive peak reverse voltage and a 10A maximum average forward rectified current. This rectifier operates at a low forward voltage drop with a 2.8mm creepage and clearance distance. The SE100PWTLK surface-mount standard rectifier includes an oxide planar chip junction and a very low profile (typical height of 1.3mm). This device complies with halogen-free RoHS and meets the UL 94 V-0 flammability rating. The SE100PWTLK surface-mount standard rectifier is ideal for industry and automotive onboard charger applications.

Features

2.8mm minimum creepage and clearance distance
Very low profile - typical height of 1.3mm
Ideal for automated placement
Oxide planar chip junction
Low forward voltage drop

Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
Molding compound meets UL 94 V-0 flammability rating
RoHS-compliant

Applications

Onboard charger:
- Industry
- Automotive

Power line polarity protection

Specifications

800V maximum repetitive peak reverse voltage
240A peak forward surge current 8.3ms single half sine-wave superimposed on the rated load
-55°C to 175°C operating temperature range
