STMicroelectronics MOSFET & IGBT Gate Drivers

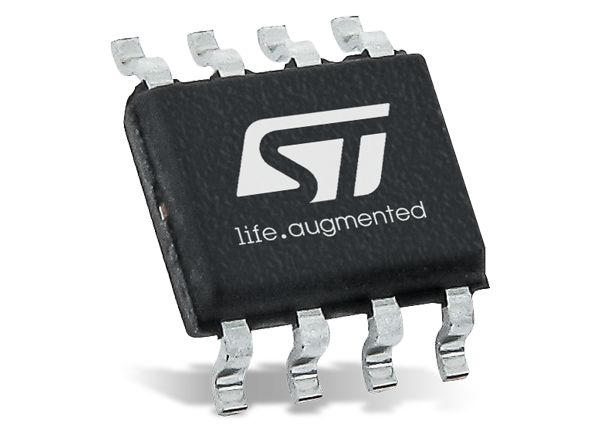

STMicroelectronics MOSFET and IGBT Gate Drivers are discrete devices for industrial, consumer, computer, and automotive applications. The portfolio offers a range of single- to half-bridge and multiple-channel drivers. The drivers are rated for low- or high-voltage (up to 1500V) applications. ST also offers galvanically-isolated gate driver ICs for safety and functional requirements. System-in-Package (SiP) solutions integrate high- and low-side gate drivers and MOSFET-based power stages. This makes them ideal for the industrial market with higher levels of integration and lower development costs.
ST's STDRIVE family of half-bridge MOSFET and IGBT gate drivers are designed to operate in harsh industrial environments, withstanding high voltages up to 600V while maintaining good noise immunity and low switching losses. L6491, L6494, and L6498 high-voltage half-bridge gate drivers are particularly suited for medium- and high-capacity power switches thanks to the sink/source current capability up to 4A.
The evaluation boards EVAL6494L and EVAL6498L allow evaluation of L6494 and L6498 high voltage, high and low-side 2A gate drivers designed to operate in harsh industrial environments. The devices can withstand high voltages up to 600V while maintaining good noise immunity and low switching losses.
Videos
LONGEVITY COMMITMENT
Featured Products
STMicroelectronics L6491 4A Gate Driver
High-Voltage High and Low-Side 4A Gate Driver manufactured with the BCD6 OFF-LINE technology.
STMicroelectronics L6494 High Voltage High/Low-Side 2A Gate Drivers
Single chip half-bridge gate drivers for N-channel power MOSFETs or IGBTs.
STMicroelectronics L6498 High-Voltage Half-Bridge Drivers
High-voltage devices manufactured with BCD6 "offline" technology.
STMicroelectronics PWD13F60 Gate Drivers
High-density power driver and high-voltage full bridge with integrated gate drivers.
Evaluation Tools
STMicroelectronics EVAL6491HB Demonstration Board for L6491 Driver
Evaluates all of the L6491 features while driving a power switch with voltage rating up to 600V.
STMicroelectronics STEVAL-CTM009V1 STripFET Evaluation Kit
Motor Control Evaluation Kit designed to demonstrate the capabilities of STripFET F7 Power MOSFETs.
STMicroelectronics EVAL6494L Evaluation Board
Demonstration board designed to evaluate L6494L gate driver.
STMicroelectronics EVAL6498L Evaluation Boards
Designed to evaluate L6498L high voltage gate driver with BCD6 OFF-LINE technology.
STMicroelectronics EVALSTGAP2DM Evaluation Board
Demonstration board designed to evaluate STGAP2DM isolated half-bridge gate driver.
STMicroelectronics EVALSTGAP2SCM Demonstration Board
Used to evaluate the STGAP2SCM isolated single gate driver.
STMicroelectronics EVAL6393FB Development Board
Designed to demonstrate two L6393 drivers to drive a single-phase load using full bridge topology.
