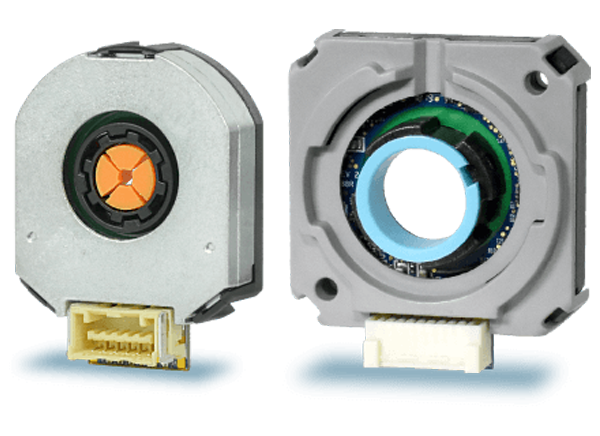

Same Sky AMT Encoders
Same Sky AMT Encoders are highly accurate, rugged modular encoders in incremental, absolute, and commutation versions suitable for use in challenging environments. An innovative design makes the AMT Series resistant to dirt, dust, and oil. Other features include an operating temperature range from -40°C up to +125°C, high accuracy, simple assembly, and low current draw. Same Sky AMT Encoders are ideal for industrial, automation, robotics, and renewable energy applications.
Features
- Up to 22 programmable resolutions from 48PPR to 5120PPR
- Pre-configured models are also available
- Supports shaft sizes from 1mm to 15.875mm (5/8")
- Low current draw
- Low power consumption
- Simple assembly
- Compact design
- -40°C to +125°C operating temperature range
Applications
- Industrial
- Automation
- Robotics
- Renewable energy
Videos
Infographic
Additional Resources
Incremental Capacitive Modular Encoders
Same Sky AMT10-V/AMT10E-V/AMT11-V Incremental Encoder Kits
Includes encoders, mounting tools & baseplates, offers several hundred configurations in 1 package.
Same Sky AMT10/10E Incremental Capacitive Modular Encoders
16 programmable resolutions up to 5120PPR, innovative capacitive platform, resists contaminants.
Same Sky AMT11 Incremental Capacitive Modular Encoders
22 programmable resolutions from 48PPR to 4096PPR, resists contaminants such as dirt, dust, and oil.
Same Sky AMT11A Modular Incremental Encoders
Features capacitive ASIC technology and up to 4096PPR incremental resolutions.
Same Sky AMT12 Incremental Encoders
4.5V to 5.5V power supply range, 16mA current consumption, and -40°C to +125°C operating temp range.
Same Sky AMT13 Modular Incremental Encoders
Offers 22 programmable resolutions from 48 PPR to 4096 PPR, supports shaft sizes from 9mm to 5/8in.
Same Sky AMT13A Modular Incremental Encoder Kits
Provides 16 resolutions ranging from 96PPR to 4096PPR, selectable via an onboard DIP switch.
Absolute Capacitive Modular Encoders
Same Sky AMT20 Absolute Capacitive Modular Encoders
Outputs 12 bits of absolute position information with SPI communication, resists contaminants.
Same Sky AMT21 Absolute Capacitive Modular Encoders
Outputs 12-bits or 14-bits of absolute position information with RS-485 communication.
Same Sky AMT22 Modular Absolute Encoders
3.8V to 5.5V power supply range, -40°C to +105°C range, and a 12- or 14-bit absolute position.
Same Sky AMT23 Absolute Capacitive Modular Encoders
Outputs 12-bits or 14-bits of absolute position information with SSI communication.
Same Sky AMT24 Modular Absolute Encoders
3.8V to 5.5V power supply, 200ms start-up timer, and -40°C to +105°C operating temperature range.
Same Sky AMT25 Modular Encoders
Features 42mm, 12- or 14-bit, single-turn or multi-turn, absolute, capacitive encoders.
Commutation Capacitive Modular Encoders
Same Sky AMT31 Commutation Encoders
Generates standard U/V/W communication signals for commutating brushless DC motors.
Same Sky AMT33 Modular Commutation Encoders
Has 2, 4, 6, 8, 10, 12, 20 motor poles with incremental resolutions up to 4096PPR, & U/V/W signals.
