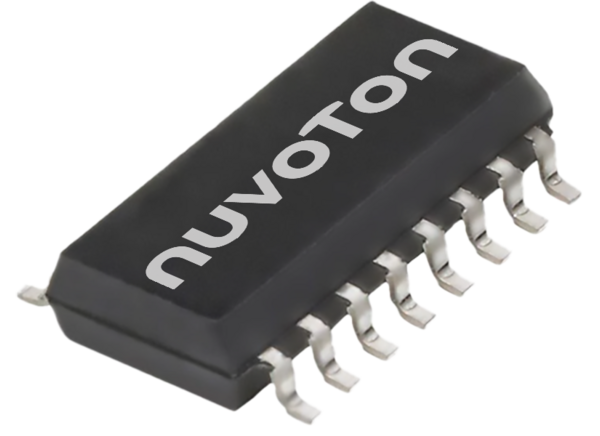

Nuvoton NAU7802 Precision 24-bit ADCs

Nuvoton NAU7802 Precision 24-bit Analog-to-Digital Converters (ADCs) feature an onboard low-noise programmable gain amplifier (PGA), onboard RC or Crystal oscillator, and a precision 24-bit sigma-delta (Z-A) analog to digital converter (ADC). The low-power, precision NAU7802 device is capable of up to 23-bit ENOB (Effective Number of Bits) performance. The device offers a comprehensive front-end solution for bridge/sensor measurement, such as in weigh scales, strain gauges, and many other high-resolution, low-sample rate applications.

The Nuvoton NAU7802 ADCs have many built-in options that allow high-performance applications with a very low external parts count. Furthermore, operating and standby currents are very low, and many power management attributes are included. These enable powering only the required elements of the chip and operating at a significantly reduced power if the full 23-bit ENOB performance is not needed.

The Programmable Gain Amplifier (PGA) supplies selectable gains from 1 to 128. The A/D conversion is performed with a Sigma-Delta modulator and programmable FIR filter, which delivers a simultaneous 50Hz and 60Hz notch filter to enhance interference immunity. Also, the NAU7802 implements a standard 2-wire interface compatible with I²C protocol for straightforward connection to and interoperation with a wide range of potential host processors.

Features

2.7V to 5.5V supply voltage
On-chip AV_DD regulator for internal analog circuit or external load cell, programmable AV_DD - off, 2.4V to 4.5V with eight options
Minimum 10mA AV_DD LDO output drive capability at 3.0V output voltage
23-bit effective precision analog-to-digital converter
Simultaneous 50Hz and 60Hz rejection (reaching -90dB)
RMS noise:
- 50nV in 10SPS data output rate and PGA gain = 128
- 150nV in 80SPS data output rate and PGA gain = 128
Programmable PGA gains from 1 to 128
Programmable ADC data output rates
External differential reference voltage ranges from 0.1V to 5V
External crystal oscillator or on-chip RC oscillator (4.9152MHz) system clock
On-chip calibration

On-chip power-on reset circuit
On-chip temperature sensor
Low power consumption and programmable power management options with <1uA standby current
External 4.9152MHz crystal oscillator
System clock:
- Internal 4.9152MHz RC oscillator (power-on default system clock)
- External 4.9152MHz crystal oscillator
MCU control interface of 2-wire interface compatible with I²C protocol
Operating temperature of -40°C to 85°C
Packages:
- SOP-16 (150mil)/PDIP-16 (300mil) / QFN-16
- Package is halogen-free, RoHS-compliant and TSCA-compliant
