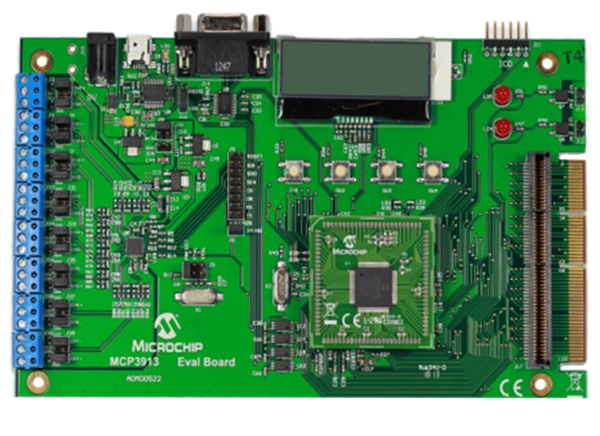

Microchip Technology MCP3913 Evaluation Board (ADM00522)

Microchip Technology MCP3913 Evaluation Board (ADM00522) is a demonstration and development platform for the MCP3913 6-Channel Analog Front End (AFE). The MCP3913 combines six simultaneous sampling delta-sigma (ΔΣ) Analog-to-Digital Converters (ADC) and six Programmable Gain Amplifiers (PGA) in a single device. The MCP3913 also integrates a phase delay compensation block, a low-drift internal voltage reference, digital offset and gain error calibration registers, and a high-speed 20MHz SPI compatible serial interface.

The Microchip Technology MCP3913 Evaluation Board also provides a development platform for 16-bit PIC® microcontroller-based applications. The system comes with a programmed PIC24FJ256GA110 Plug-in Module (PIM) that communicates with the Hi-Resolution ADC Utility software for data exchange and ADC setup via a USB connection to the board.

Features

Six-channel ADC MCP3913 output display using serial communication to the PC software interface
Simultaneous 57ksps at OSR32 address loop ALL or 95dB SINAD at OSR512 performance on MCP3913
System and ADC performance analysis through graphical PC software showing noise histogram, frequency domain (FFT), time domain scope plot, and statistical numerical analysis
Robust hardware design with analog grounding and analog/digital separation, allowing low noise evaluation of the MCP3913 device; includes separate power supplies and power planes on a 4-layer board

PICtail™ Plus connectors for Explorer 16 daughter board compatibility
Key components
- MCP3913 6-Channel AFE in a QFN-40 package
- PIC24FJ256 16-bit Microcontroller in a Plug-in Module
- MCP2200 USB 2.0 to UART Protocol Converter
- NHD-C0216-CIZ-FSW-FBW-3V3 2 x 16 character LCD Display
