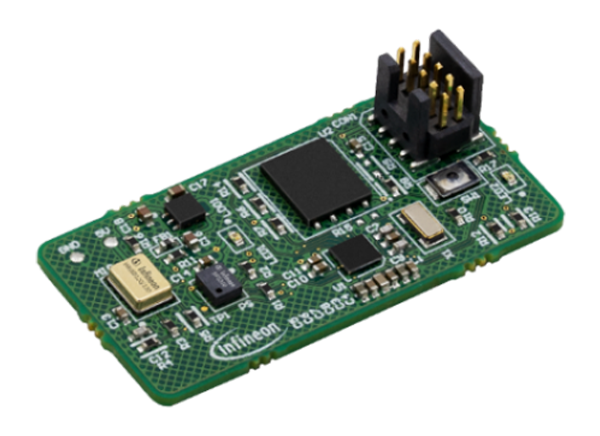

Infineon Technologies EVAL_MICROIAS MicroIAS Reference Design Board
Infineon Technologies EVAL_MICROIAS MicroIAS Reference Design Board is designed for use as a sensor fusion-based alarm system. The small form factor reference board supports the Infineon Alarm System (IAS) software algorithms. It is based on a QuickLogic microcontroller with fully qualified software.
Features
- Easy visualization of all three modes via UART
- Test mode
- Glass break mode: Burglary by breaking the glass
- Intruder mode: Forced intrusion by opening window/door
- Adjustable sensitivity for different room sizes
- LED indication of detected glass break/intrusion event
- Fully tested and qualified software on a small form factor
- The evaluation board includes the following products:
- Infineon XENSIVTM microphone IM69D130
- Infineon XENSIVTM pressure sensor DPS310
- Fully tested and qualified software (for QuickLogic Microcontroller)
Associated Products
Infineon Technologies XENSIV™ MEMS Microphones
Designed for applications requiring low self-noise, wide dynamic range, and low distortions.
Infineon Technologies DPS310 Digital Pressure Sensor
A tiny barometric air pressure sensor with a high accuracy and a low current consumption.

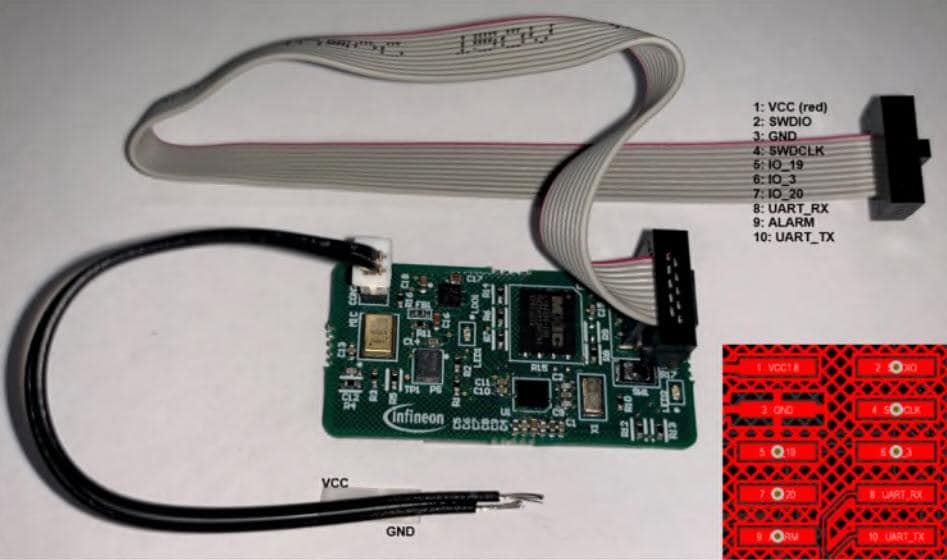

Board Connections
Published: 2020-12-14
| Updated: 2024-12-12
