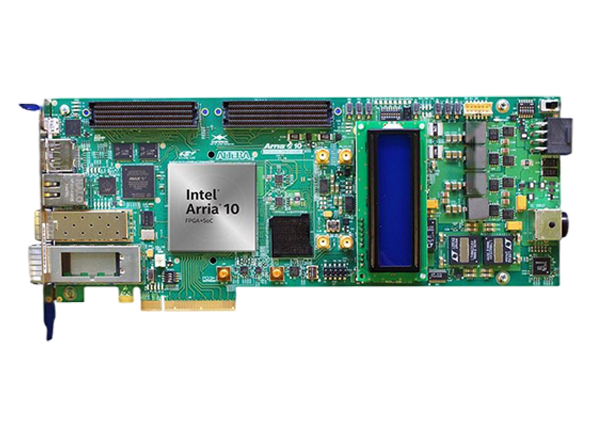

Altera Arria® 10 GX FPGA Development Kit

Altera Arria® 10 GX FPGA Development Kit provides a complete design environment that includes all hardware and software to take advantage of the performance and capabilities available in Altera Arria® 10 GX FPGAs. The Development Kit is used to develop and test PCI Express (PCIe) 3.0 designs using the PCI-SIG-compliant development board. The Kit is also designed to create and test memory subsystems consisting of DDR4, DDR3, QDR™IV, and RLDRAM III memories.

Furthermore, the Altera Arria® 10 GX FPGA Development Kit develops modular and scalable designs using the FPGA mezzanine card (FMC) connectors to interface to an FMC mezzanine card provided by Altera partners and supporting protocols. These protocols include JESD204B, Hybrid Memory Cube, Bandwidth Engine 2, Serial RapidIO, 10Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI), OBSAI, and many others.

Kit Contents

  • Altera Arria® 10 GX FPGA development board running on Altera Arria 10 GX 10AX115S2F45I1SG2 FPGA
  • 2GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards
  • 2x FMC loopback cards supporting transceiver, LVDS and single-ended I/Os
  • 1x  quad small-form-factor pluggable (QSFP) and one SFP+ port
  • 2x FMC low-pin count (LPC + 15x transceivers) connector
  • PCIe x8 edge connector
  • Serial digital interface (SDI) channel
  • Character LCD
  • AC adapter power cables
  • Ethernet and USB cables

Additional Resources

Videos

Overview

Altera Arria® 10 GX FPGA Development Kit

Block Diagram

Block Diagram - Altera Arria® 10 GX FPGA Development Kit

Design Software

Quartus® Prime Design Software

Altera Quartus® Prime Design Software

Multi-platform design environment for all phases of FPGA and CPLD design.

Learn Moreabout Altera Quartus® Prime Design Software View Productsrelated to Altera Quartus® Prime Design Software
