ADS7885SDBVT

Name: Texas Instruments ADS7885SDBVT
Brand: Texas Instruments
SKU: 595-ADS7885SDBVT
Price: 6.39 CAD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser #:

595-ADS7885SDBVT

Mfr. #:

ADS7885SDBVT

Mfr.:

Texas Instruments

Description:

Analog to Digital Converters - ADC 2.7V-5.5V 8B 3MSPS S erial ADC A 595-ADS A 595-ADS7885SDBVR

Datasheet:

ADS7885SDBVT Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about Texas Instruments ADS7885SDBVT

In Stock: 313

Stock:: 313 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 250)

Cut Tape

MouseReel™ (+$8.50)

Pricing (CAD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$6.39	$6.39
	$4.85	$48.50
	$4.45	$111.25
	$4.02	$402.00
Full Reel (Order in multiples of 250)
	$3.82	$955.00
	$3.62	$1,810.00
	$3.52	$3,520.00
	$3.48	$8,700.00

† $8.50 MouseReel™ fee will be added and calculated in your shopping cart. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Texas Instruments
Product Category:	Analog to Digital Converters - ADC
RoHS:
Series:	ADS7885
Mounting Style:	SMD/SMT
Package / Case:	SOT-23-6
Resolution:	8 bit
Number of Channels:	1 Channel
Interface Type:	SPI
Sampling Rate:	3 MS/s
Input Type:	Single-Ended
Architecture:	SAR
Analog Supply Voltage:	2.7 V to 5.5 V
Digital Supply Voltage:	2.7 V to 5.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Country of Assembly:	TH
Country of Diffusion:	US
Country of Origin:	TH
Development Kit:	ADS7885EVM
DNL - Differential Nonlinearity:	+/- 0.4 LSB
Features:	Small Size
INL - Integral Nonlinearity:	+/- 0.4 LSB
Moisture Sensitive:	Yes
Number of Converters:	1 Converter
Pd - Power Dissipation:	20 mW
Power Consumption:	15 mW
Product Type:	ADCs - Analog to Digital Converters
Reference Type:	Supply
SINAD - Signal to Noise and Distortion Ratio:	49.8 dB
Factory Pack Quantity:	250
Subcategory:	Data Converter ICs
Supply Voltage - Max:	3.3 V
Supply Voltage - Min:	3.3 V
Unit Weight:	36 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ADS7885SDBVT Datasheet

Images

Models

ADS7885SDBVT Symbol & Footprint by SnapMagic

PCN

This functionality requires JavaScript to be enabled.

CAHTS:: 8542390000
CNHTS:: 8542399000
USHTS:: 8542390030
JPHTS:: 8542390990
TARIC:: 8542399000
MXHTS:: 85423999
ECCN:: EAR99

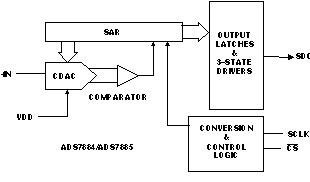

ADS7884/5 SAR Analog-to-Digital Converters

Texas Instruments ADS7884/85 MicroPower Miniature SAR Analog-to-Digital Converters provide 8-bit (ADS7885) and 10-bit (ADS7884) resolution within a 3MSPS ADC. A capacitor based SAR A/D converter with inherent sample and hold is included on the device. Controlled by the CS and SCLK signals, the serial interface in each device offers options for glueless connections with microprocessors and DSPs. The falling edge of CS is sampled through the input signal, while the SCLK is used for conversion and serial data output. Other features for the Texas Instruments ADS7884/85 include a wide supply range of 2.7V to 5.5V, low-power consumption, and a power-saving powerdown for the device when operating at lower conversion speeds.
