STPS30M100SFP

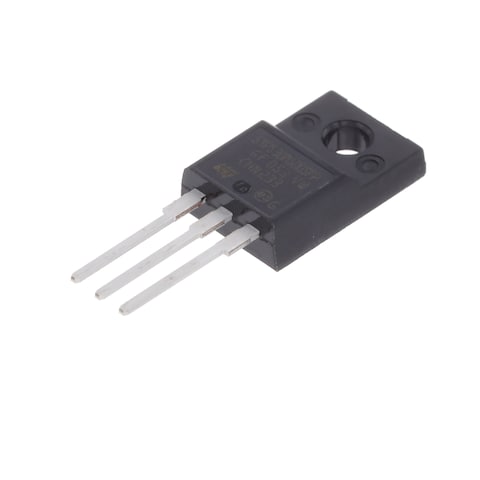

Name: STMicroelectronics STPS30M100SFP
Brand: STMicroelectronics
SKU: 511-STPS30M100SFP
Price: 2.96 CAD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser #:

511-STPS30M100SFP

Mfr. #:

STPS30M100SFP

Mfr.:

STMicroelectronics

Description:

Schottky Diodes & Rectifiers 100V 30A

Complete Your Design

Datasheet:

STPS30M100SFP Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

In Stock: 1,849

Stock:: 1,849 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (CAD)

Qty.	Unit Price	Ext. Price
	$2.96	$2.96
	$1.28	$12.80
	$1.27	$127.00
	$1.01	$505.00
	$0.916	$916.00
	$0.83	$1,660.00
	$0.774	$3,870.00
	$0.764	$7,640.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Schottky Diodes & Rectifiers
RoHS:
Product:	Schottky Rectifiers
Mounting Style:	Through Hole
Package / Case:	TO-220FP-3
Configuration:	Single Dual Anode
Technology:	Si
If - Forward Current:	30 A
Vrrm - Repetitive Reverse Voltage:	100 V
Vf - Forward Voltage:	800 mV
Ifsm - Forward Surge Current:	300 A
Ir - Reverse Current:	175 uA
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 150 C
Series:	STPS30M100S
Packaging:	Tube
Brand:	STMicroelectronics
Product Type:	Schottky Diodes & Rectifiers
Factory Pack Quantity:	1000
Subcategory:	Diodes & Rectifiers
Unit Weight:	2.300 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STPS30M100SFP Datasheet (PDF)

PCN

CAHTS:: 8541100090
CNHTS:: 8541100000
USHTS:: 8541100080
JPHTS:: 854110090
KRHTS:: 8541109000
TARIC:: 8541100000
MXHTS:: 8541100101
ECCN:: EAR99

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.
