BTA04-700SRG

Name: STMicroelectronics BTA04-700SRG
Brand: STMicroelectronics
SKU: 511-BTA04-700S
Price: 3.61 CAD
Availability: InStock

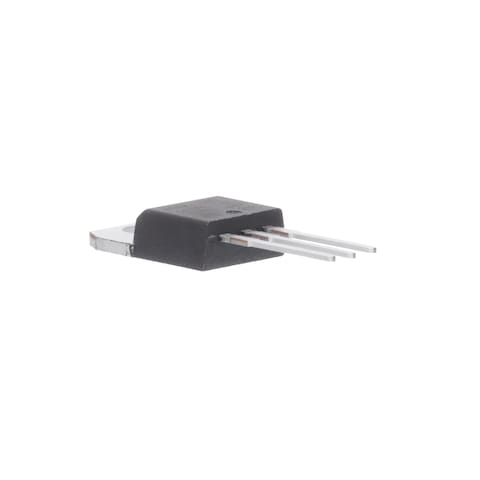

Images are for reference only
See Product Specifications

Mouser #:

511-BTA04-700S

Mfr. #:

BTA04-700SRG

Mfr.:

STMicroelectronics

Description:

Triacs 4 Amp 700 Volt

Complete Your Design

Datasheet:

BTA04-700SRG Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about STMicroelectronics BTA04-700SRG

In Stock: 1,366

Stock:: 1,366 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 1366 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (CAD)

Qty.	Unit Price	Ext. Price
	$3.61	$3.61
	$2.31	$23.10
	$1.60	$160.00
	$1.35	$675.00
	$1.13	$1,130.00
	$1.02	$2,040.00
	$0.986	$4,930.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Triacs
RoHS:
Series:	BTA04
Non Repetitive On-State Current:	42 A
Rated Repetitive Off-State Voltage VDRM:	700 V
Off-State Leakage Current @ VDRM IDRM:	10 uA
On-State Voltage:	1.65 V
Holding Current Ih Max:	25 mA
Gate Trigger Voltage - Vgt:	1.5 V
Gate Trigger Current - Igt:	10 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 110 C
Mounting Style:	Through Hole
Package / Case:	TO-220-3
Packaging:	Tube
Brand:	STMicroelectronics
Product Type:	Triacs
Factory Pack Quantity:	1000
Subcategory:	Thyristors
Unit Weight:	6 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

BTA04-700SRG Datasheet (PDF)

PCN

Product Change Notification 2025-7-23 (PDF)

CAHTS:: 8541300000
CNHTS:: 8541300000
USHTS:: 8541300080
JPHTS:: 854130000
TARIC:: 8541300000
ECCN:: EAR99

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.
