1414361

Name: Phoenix Contact 1414361
Brand: Phoenix Contact
SKU: 651-1414361
Price: 5.09 CAD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser #:

651-1414361

Mfr. #:

1414361

Mfr.:

Phoenix Contact
Phoenix Contact

Description:

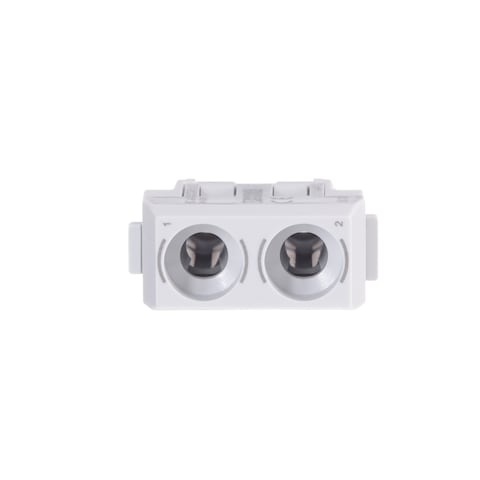

Heavy Duty Power Connectors HC-M-02-CT-F

Datasheet:

1414361 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about Phoenix Contact 1414361

In Stock: 38

Stock:: 38 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (CAD)

Qty.	Unit Price	Ext. Price
	$5.09	$5.09

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	HC-M
Product:	Inserts
Current Rating:	40 A
Number of Positions:	2 Position
Termination Style:	Crimp
Voltage Rating:	830 V
Insert / Contact Gender:	Female
Housing Material:	Polycarbonate (PC)
Contact Plating:	Silver
Contact Material:	Copper Alloy
Wire Gauge Min:	16 AWG
Wire Gauge Max:	8 AWG
Application:	Contacts Sold Separately
Brand:	Phoenix Contact
Flammability Rating:	UL 94 V-0
Height:	42.4 mm
Housing Color:	White
Length:	14.6 mm
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Mounting Style:	Free Hanging
Number of Rows:	1 Row
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	1
Subcategory:	Power Connectors
Width:	34.2 mm
Wire Gauge Range:	16 AWG to 8 AWG
Unit Weight:	11.510 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1414361 Datasheet (PDF)

PCN

Product Change Notification (PDF)

CAHTS:: 8538909090
CNHTS:: 8538900000
USHTS:: 8538906000
BRHTS:: 85389090
ECCN:: EAR99

HEAVYCON Connectors

Phoenix Contact HEAVYCON Connectors feature heavy-duty components that protect interfaces and ensure secure power, data, and signal transmission under the harshest conditions. The robust housings and matching contact inserts can be combined across series types to create the right plug-in connector for an application. The entire HEAVYCON product line consists of metal and plastic hoods and housings, contact inserts, cable glands, and accessories. The standard connectors are versatile with corrosion-resistant metal housing and single- or double-locking latches. The EVO products offer a flexible selectable cable outlet direction via swiveled bayonet locking. The HEAVYCON Advance series is robust without compromise and cost-effective with the direct mounting option. Phoenix Contact HEAVYCON Standard, EVO, Advanced, D7, and HPR series comprise the complete HEAVYCON solution. HEAVYCON Complete provides the right connector for every application.
