211888-0001

Name: Molex 211888-0001
Brand: Molex
SKU: 538-211888-0001
Price: 5.69 CAD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser #:

538-211888-0001

Mfr. #:

211888-0001

Mfr.:

Molex

Description:

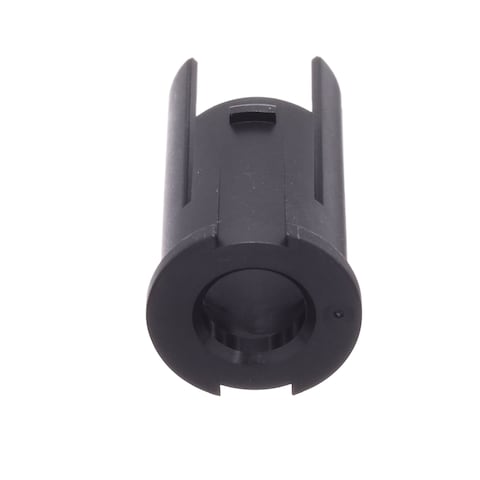

Heavy Duty Power Connectors PowerWize HC 6mm TERM RET. HSG 6AWG

Datasheet:

211888-0001 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about Molex 211888-0001

In Stock: 320

Stock:: 320 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (CAD)

Qty.	Unit Price	Ext. Price
	$5.69	$5.69
	$5.18	$51.80
	$4.91	$122.75
	$4.79	$239.50
	$4.56	$364.80
	$4.00	$960.00
	$3.88	$2,172.80
	$3.30	$3,432.00
	$3.08	$7,884.80

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	211888
Product:	Accessories
Accessory Type:	TPA Retainer
Number of Positions:	1 Position
Housing Material:	PBT
Wire Gauge Max:	6 AWG
Packaging:	Bulk
Tradename:	PowerWize
Brand:	Molex
Flammability Rating:	UL 94 V-0
For Use With:	Contacts
Housing Color:	Black
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	80
Subcategory:	Power Connectors
Part # Aliases:	2118880001 02118880001
Unit Weight:	2.874 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

USHTS:: 8538906000
TARIC:: 8547200090
ECCN:: EAR99

PowerWize High-Current Interconnect System

Molex PowerWize High-Current Interconnect System is a high-current wire-to-board / wire-to-busbar interconnect system that allows engineers to deliver power throughout their designs. The two-circuit headers and receptacle housings are available in two sizes: 6mm (rated up to 120A) and 8mm (rated up to 175A). Mechanically keyed, color-coded versions are available for applications that require multiple headers on the same board. Color-coding ensures that cable assemblies are not mismated during system integration. The screw-mount headers can attach to either PCBs or busbars. Molex PowerWize applications include industrial automation, alternative energy, data centers, test and measurement, and telecommunication.
