AGC-V-8-R

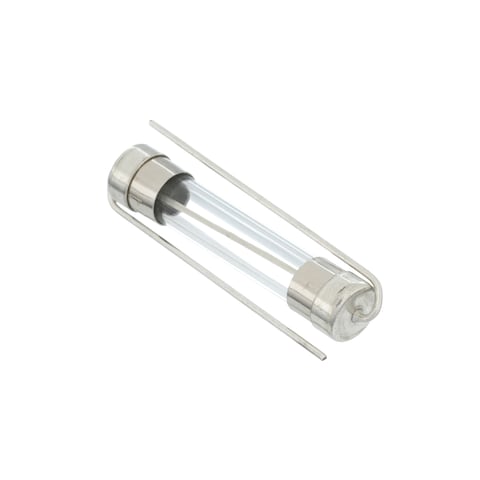

Name: Eaton AGC-V-8-R
Brand: Eaton Electronics
SKU: 504-AGC-V-8-R
Price: 7.46 CAD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser #:

504-AGC-V-8-R

Mfr. #:

AGC-V-8-R

Mfr.:

Eaton Electronics

Description:

Cartridge Fuses SMALL DIMENSION FUSE

Datasheet:

AGC-V-8-R Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about ECAD Model.

More Information

Learn more about Eaton Electronics AGC-V-8-R

In Stock: 112

Stock:: 112 Can Ship Immediately

An unexpected error occurred. Please try again later.
Factory Lead-Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (CAD)

Qty.	Unit Price	Ext. Price
	$7.46	$7.46
	$7.44	$29.76
	$5.74	$68.88
	$4.77	$248.04
	$4.42	$442.00
	$3.97	$1,000.44
	$3.74	$1,870.00
	$3.60	$3,600.00
	$3.50	$8,750.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	Cartridge Fuses
RoHS:
Series:	AGC
Product:	Glass Fuses
Current Rating:	8 A
Fuse Type:	Fast Blow
Fuse Size / Group:	3AG (6.3 mm x 32 mm)
Voltage Rating AC:	250 VAC
Interrupt Rating:	200 A at 250 VAC, 10 kA at 125 VAC, 1 kA at 32 VAC
Mounting Style:	Board Mount
Termination Style:	Axial
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Resistance:	9 mOhms
Body Style:	Cylindrical Leaded
Brand:	Eaton Electronics
Diameter:	6.35 mm
Indicator Style:	Without Indicator
Length:	32.82 mm
Product Type:	Fast-Acting Glass Tube Fuses
Factory Pack Quantity:	4
Subcategory:	Fuses
Type:	Fast-acting Fuse

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AGC-V-8-R Datasheet (PDF)

PCN

Shipping Box External and Internal Label Update (PDF)

EU Declaration of Conformity (PDF)

CAHTS:: 8536100000
CNHTS:: 8536100000
USHTS:: 8536100020
JPHTS:: 853610000
KRHTS:: 8536109000
TARIC:: 8536101090
BRHTS:: 85361000
ECCN:: EAR99

Fuses & Fuse Holders

Eaton Electronics Fuses and Fuse Holders are available in a wide range of fuses, including blade-type, ferrule, radial-leaded, surface-mount chip, and brick. The portfolio includes automotive, cartridge, industrial, and electrical fuses. The Fuses are designed to offer reliable overcurrent and overvoltage circuit protection.

Battery Management Systems

Eaton provides a wide portfolio of products for Battery Management Systems (BMS), including terminal blocks, fuses, supercapacitors, chokes, inductors, and more. Battery Management Systems monitor individual cells, system voltage, current, and temperature. When monitoring individual cells, the BMS balances voltages and regulates the current flow, and if the upper or lower voltage, current, or temperature limit is exceeded, the BMS temporarily disconnects the load or source. Eaton Battery Management Systems estimate the State of Health (SoH), State of Charge (SoC), State of Energy (SoE), and State of Power (SoP) in batteries.

AGC Fast-Acting Glass Tube Fuses

Eaton Electronics AGC Glass Tube Fuses are UL 248-14 fast-acting fuses in a 6.3mm x 32mm (0.25" x 1.25") package. Eaton AGC fuses provide overcurrent protection in power supplies, battery chargers, monitors, consumer electronics, and test equipment. AGC fast-acting fuses operate over a -55°C to +125°C operating temperature range and a 0.1A to 40A current rating range.
