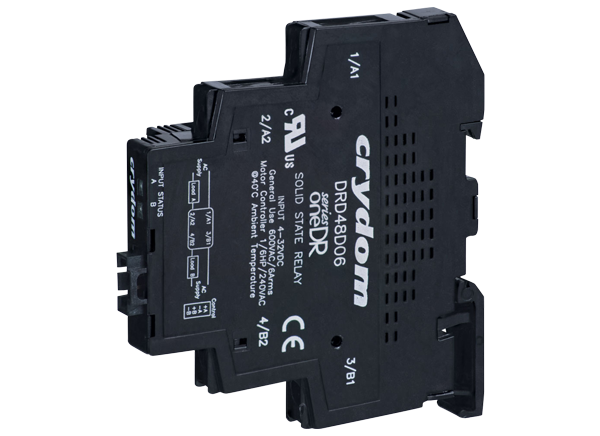

Crydom / Sensata SeriesOne DR DIN Rail-Mounted Solid State Relays

Crydom / Sensata SeriesOne DR DIN Rail-Mounted Solid State Relays incorporate proprietary thermal management technology to achieve output ratings of 3A to 12A at 24VAC to 600VAC and 3A to 24A at 1VDC to 100VDC. These compact relays are ideal for use in demanding applications where space may be limited, providing greater power density than similar DIN rail SSRs. The SeriesOne series offers AC and DC control input options as well as zero voltage and instantaneous turn-on outputs (AC output models). Other features include high surge current and I2t fusing ratings, 11mm or 18mm widths, and touch-safe terminals. Applications for Crydom / Sensata SeriesOne DR-Mounted SSRs include automation equipment, industrial ovens, packaging equipment, lighting controls, battery management systems, backup power supplies, and heating, ventilation, air conditioning, and refrigeration (HVAC-R).

Features

  • AC or DC control
  • 3A to 12A output rating at 24VAC to 600VAC and 3A to 24A output rating at 1VDC to 100VDC
  • Fits standard 35mm DIN rail
  • 11mm or 18mm width
  • Compact housing
  • LED input status indicator¬†
  • Zero voltage or instantaneous turn-on output (AC output models)
  • High surge current and I2t fusing ratings
  • UL Class I and II, Division 2 approved, for use in hazardous locations
  • UL and cUL listed, HP rated, CE and RoHS compliant

Applications

  • Automation equipment
  • Industrial ovens
  • Plastic injection molding equipment
  • Packaging equipment
  • Professional cooking equipment
  • Lighting controls
  • HVAC-R
  • Battery management systems
  • Backup power supplies
  • Valve controls

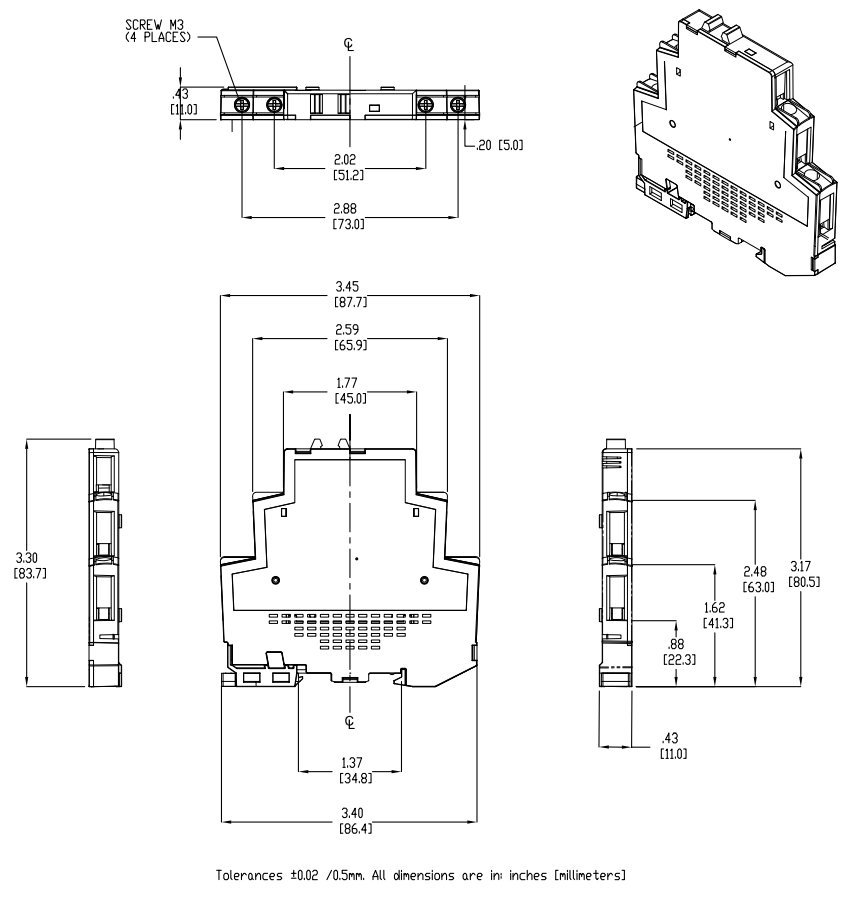

Dimensions In. (mm)
