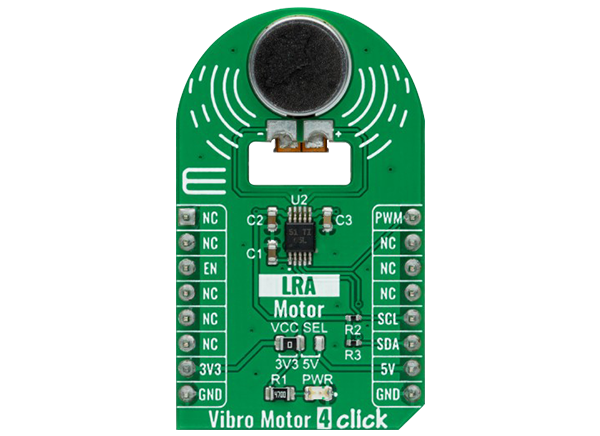

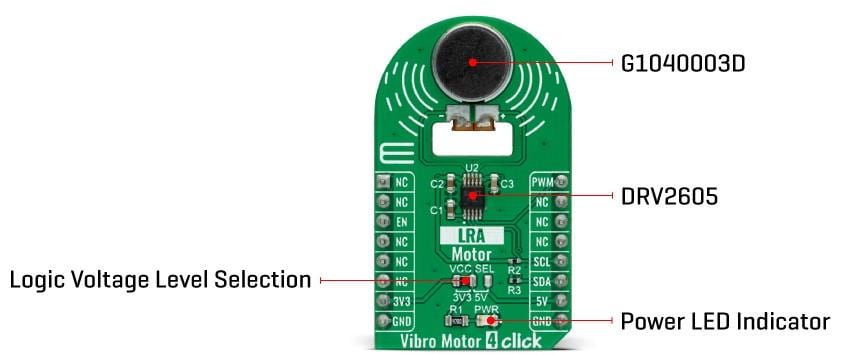

Vibro Motor 4 Click features the Jinlong Machinery & Electronics, Inc. G1040003D coin-sized linear resonant actuator (LRA). It generates vibration/haptic feedback and is driven by a flexible Haptic/Vibra driver. The DRV2605, G1040003D vibrates in the Z-axis, which is perpendicular to the face of the vibration motor. It draws a maximum of 170mA while producing the highest G force/vibration energy of 2 GRMS.
Jinlong Machinery & Electronics, Inc G1040003D coin-sized linear resonant actuator that generates vibration/haptic feedback in the Z plane perpendicular to the motor's surface
Low power consumption
Vibration force in Z-axis
Excellent choice for devices with a limited battery capacity
I2C, PWM interface
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage
Devices with limited battery capacity and for crisp haptic feedback and low power consumption
