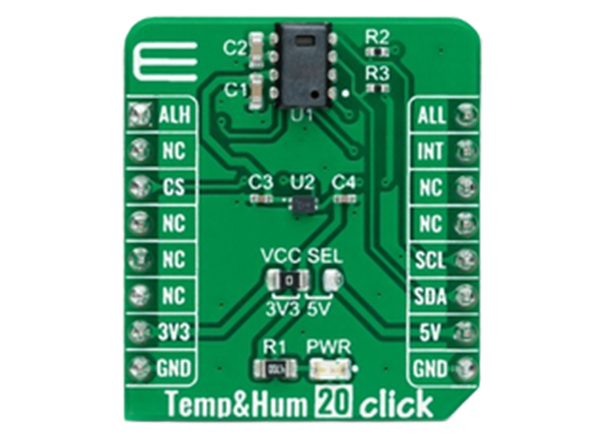

Mikroe Temp & Hum 20 Click features the Amphenol CC2D23 highly accurate, fully-calibrated relative humidity and temperature sensor. The sensor has high accuracy (±2% from 20% to 80%RH (±3% over entire humidity range)) and high resolution. It provides factory-calibrated 14-bit data to the host controller with a configurable I2C interface. It also comes with alarm features for preset control at a minimum and maximum humidity.
Amphenol CC2D23 highly accurate, fully-calibrated relative humidity and temperature sensor
Low power consumption
Fully-calibrated and temperature-compensated
High precision and accuracy
I2C interface with alarm functions
Reliable in harsh environments
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage
Various temperature and humidity-related applications and a vast number of applications ranging from portable devices to products designed for harsh environments
Mikroe Sensor Click Boards
Enables the addition of sensors to applications and designs, based around the mikroBUS™ interface.
