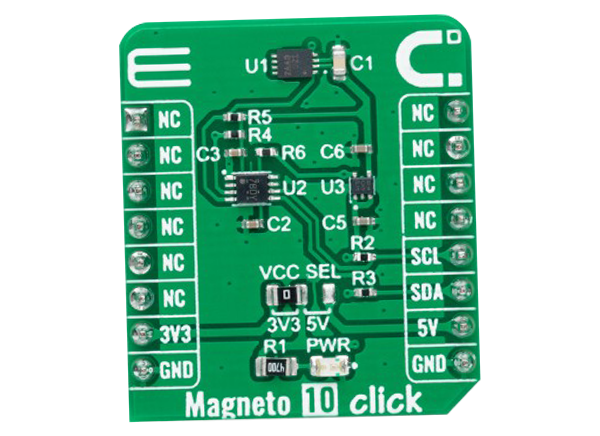

Mikroe Magneto 10 Click

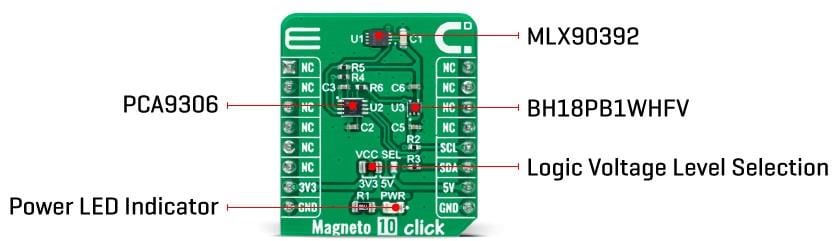

Mikroe Magneto 10 Click features the Melexis Technologies MLX90392 +/-5mT range magnetometer for low-noise applications. The MLX90392 is designed for micropower applications. It measures magnetic fields along the three axes (X, Y being in a plane parallel to the surface of the die, and Z being perpendicular to the surface). Those measurements and the MLX90392’s temperature are converted into 16-bit words, transferred upon request over I2C communication.


  • On-board modules
  • Low power consumption
  • High precision
  • Triaxis Hall technology for best-in-class in noise
  • Integrated temperature sensor
  • 16-bit digital magnetic and temperature output
  • Selectable operational modes
  • I2C interface
  • mikroBUS compatibility
  • S (28.6mm x 25.4mm) click board size
  • 3.3V or 5V input voltage


  • Position sensing requiring a small magnetic range and precise position measurement where noise is a critical design parameter


Mikroe Magneto 10 Click
Published: 2021-11-22 | Updated: 2022-03-11
