Mikroe Gyro 6 Click

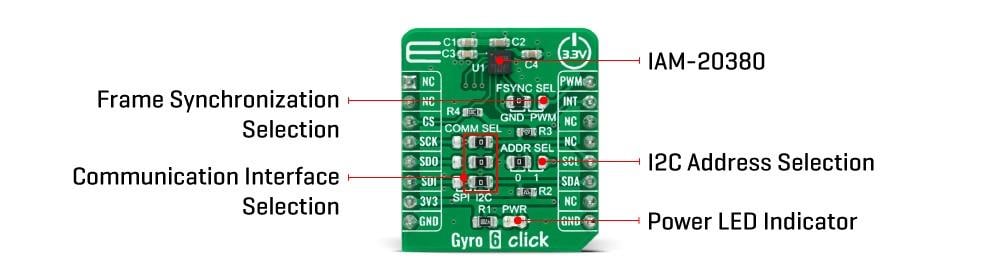

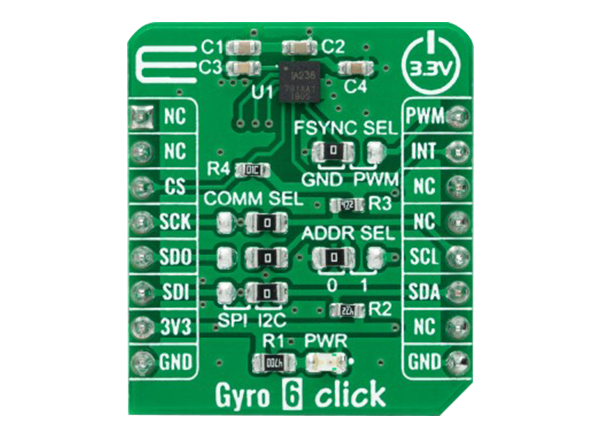

Mikroe Gyro 6 Click features the TDK InvenSense IAM-20380 3-axis digital-output X-, Y-, and Z-axis angular rate sensor (gyroscope). It has a full-scale programmable range of ±250DPS, ±500DPS, ±1000DPS, and ±2000DPS. It also has a factory-calibrated initial sensitivity and configurable host interface that supports both SPI and I2C serial communication. The device features a 512-byte FIFO that can lower the traffic on the serial bus interface and reduce power consumption. This allows the host to burst-read sensor data and then go into a low-power mode.


  • On-board modules
  • Low power consumption
  • Full-scale programmable range up to ±2000dps
  • Integrated 16-bit ADCs
  • User-programmable digital filters
  • Embedded temperature sensor
  • Programmable interrupts
  • High performance
  • Reliability
  • I2C, PWM, SPI interface
  • mikroBUS compatibility
  • S (28.6mm x 25.4mm) click board size
  • 3.3V input voltage


  • Angular velocity sensing
  • Angle sensing and control mechanisms
  • Automotive, industrial, and navigational systems
  • Telematics


Mikroe Gyro 6 Click
Published: 2021-10-20 | Updated: 2022-03-11
