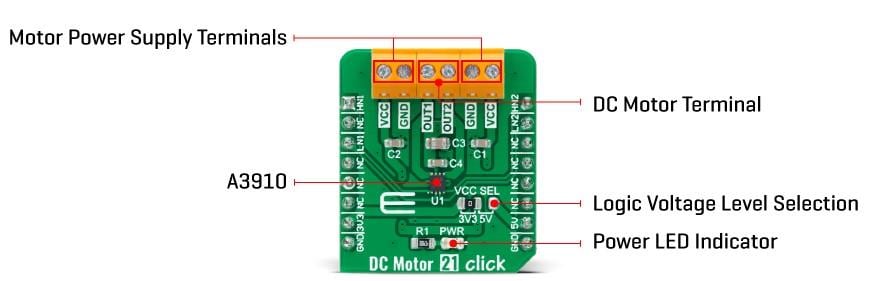

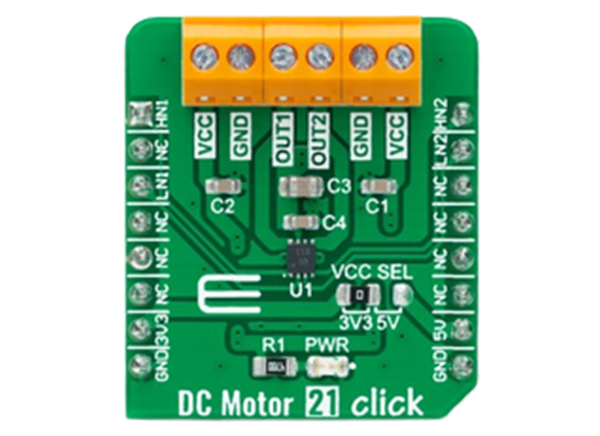

Mikroe DC Motor 21 Click features the Allegro Microsystems A3910 DC motor driver designed for low voltage power applications. The board is controlled with several GPIO pins and has a wide operating voltage range with an output current capacity of 500mA. In addition to the possibility to be used in the full-bridge configuration to drive a single bidirectional DC motor. The Motor 21 Click can also be used as a dual half-bridge to drive dual DC motors.
Allegro Microsystems A3910 dual half-bridge motor driver designed for low voltage power applications
Low power consumption
Full- and half-bridge configuration
Standby mode with zero drain-current
Crossover and thermal shutdown protection
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage
Driving DC brushed motors and targeted at the consumer and industrial market with end applications to low voltage equipment
