Mikroe Buck 16 Click

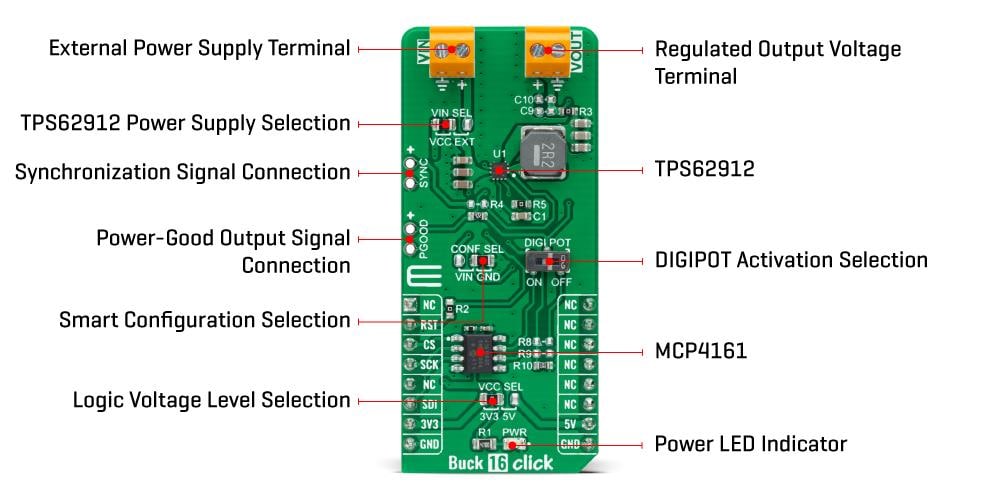

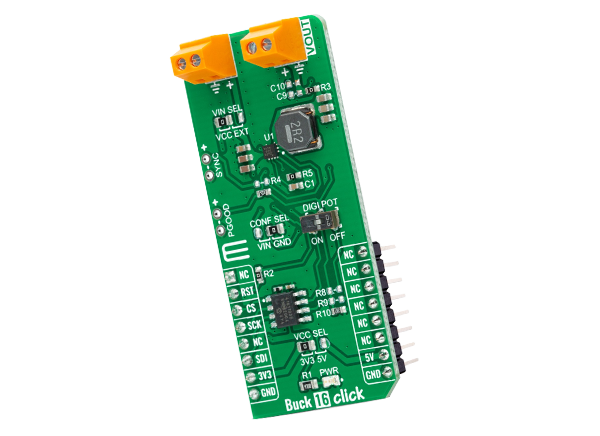

Mikroe Buck 16 Click features a DC-DC power converter that steps down the voltage from its input to its output. The board contains the Texas Instruments TPS62912 high-efficiency, low noise, and low ripple current-mode synchronous buck converter. The TPS62912 has an output-voltage error of less than 1%. This helps ensure tight output-voltage accuracy, operates at a fixed switching frequency of 2.2MHz or 1MHz, and allows synchronization to an external clock.


  • On-board modules
    • Texas Instrument TPS62912 - low-noise, low-ripple synchronous buck converter with a fixed-frequency current-mode key Features
  • Low output noise and voltage ripple
  • 2.2MHz or 1MHz fixed frequency peak current mode control
  • Synchronizable with an external clock
  • Output voltage accuracy of ±1%
  • Power-good output
  • GPIO, SPI interface
  • mikroBUS compatibility
  • L (57.15mm x 25.4mm) click board size
  • 3.3V or 5V, external input voltage


  • Noise-sensitive applications that generally use an LDO for post-regulation
  • High-speed ADCs
  • Clock and jitter cleaner
  • Serializer
  • De-serializer
  • Radar applications


Mikroe Buck 16 Click
Published: 2021-11-04 | Updated: 2022-03-11
