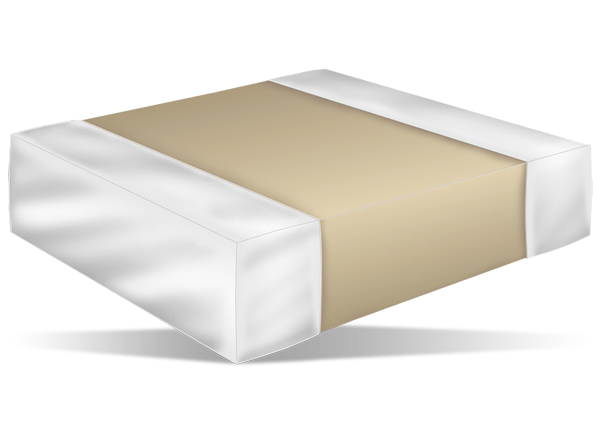

KEMET Automotive-Grade MLCCs
KEMET Automotive-Grade Multilayer Ceramic Chip Capacitors (MLCCs) are suited for a variety of applications that require reliable operation. These surface-mount MLCCs undergo a strict testing protocol and inspection criteria, making them suitable for harsh environmental conditions. KEMET automotive-grade capacitors have a maximum operating temperature of +150°C. These MLCCs meet AEC-Q200 requirements and are manufactured in state-of-the-art ISO/TS 16949:2002-certified facilities.
Features
- High voltage
- -55°C to +125°C operating temperature range
- AEC-Q200 qualified and Class I rated
- Lead free, RoHS and REACH compliant
- Temperature-stable dielectric
- 10VDC to 250VDC voltage rating range
- 0.5pF to 0.47µF capacitance range
- Low ESR and ESL
- C0G
- -55°C to +125°C operating temperature range
- RoHS compliant
- EIA 0402, 0603, 0805, 1206, 1210, 1812, and 2220 case sizes
- 10VDC to 200VDC voltage rating range
- 0.5pF up to 0.47µF capacitance range
- No piezoelectric noise
- Low ESR and ESL
- X7R
- -55°C to +125°C operating temperature range
- Lead free and RoHS compliant
- Temperature-stable dielectric
- 6.3VDC to 250VDC voltage rating range
- 150pF to 22µF capacitance range
- Non-polar device, minimizing installation concerns
- 100% pure matte tin-plated termination finish allowing for excellent solderability
- X8R
- -55°C to +150°C operating temperature range
- Low ESR and ESL
- High thermal stability
- High ripple current capability
- No capacitance change with respect to applied rated DC voltage
- Non-polar device, minimizing installation concerns
- Offered in both commercial and automotive grades
Learn More
High-Voltage MLCCs - These MLCCs exhibit no capacitance change with respect to time and voltage and exhibit a very small change in capacitance with respect to the ambient temperature. They are ideal for circuits with pulse and circuits requiring low loss. Datasheet
C0G MLCCs - C0G capacitors exhibit no change in capacitance with respect to time and voltage. They also offer a negligible change in capacitance with reference to ambient temperature. Datasheet
X7R MLCCs - The X7R series boasts a minimal change in capacitance with reference to ambient temperature and exhibits a predictable change in capacitance with respect to time and voltage. Datasheet
X8R MLCCs - These dielectrics feature a +150°C maximum operating temperature, making them reliable for extreme temperature applications. These ultra-stable dielectric capacitors are ideal for critical applications that require reliability and capacitance stability at higher operating temperatures. Datasheet
