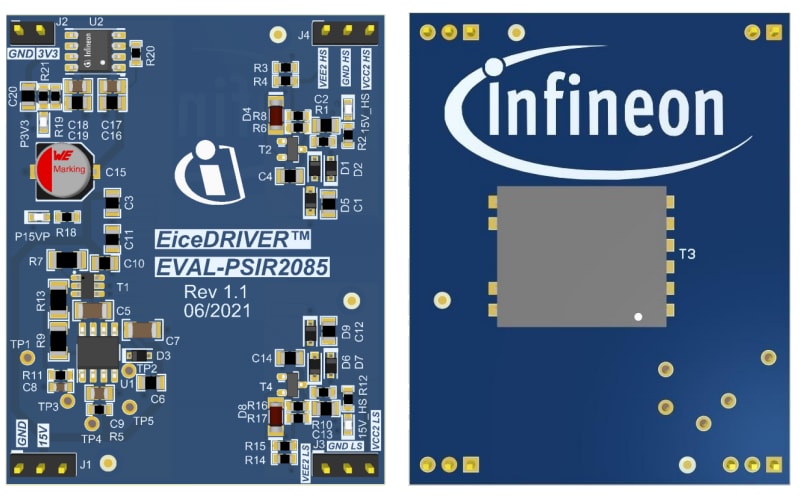

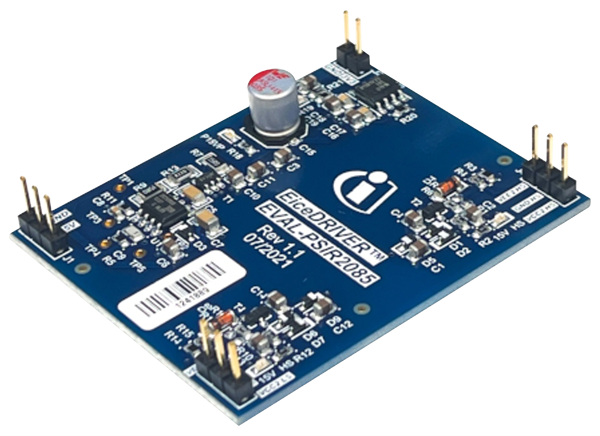

Infineon Technologies EVAL-PSIR2085 Power Supply Board is an easy-to-use, plug and play board designed for EiceDRIVER™ isolated gate driver evaluation boards. The EVAL-PSIR2085 offers two galvanically isolated power supplies. The Infineon EVAL-PSIR2085 Power Supply Board is ideal for fast EV charging, Uninterruptible Power Supplies (UPS), and server power supply applications.

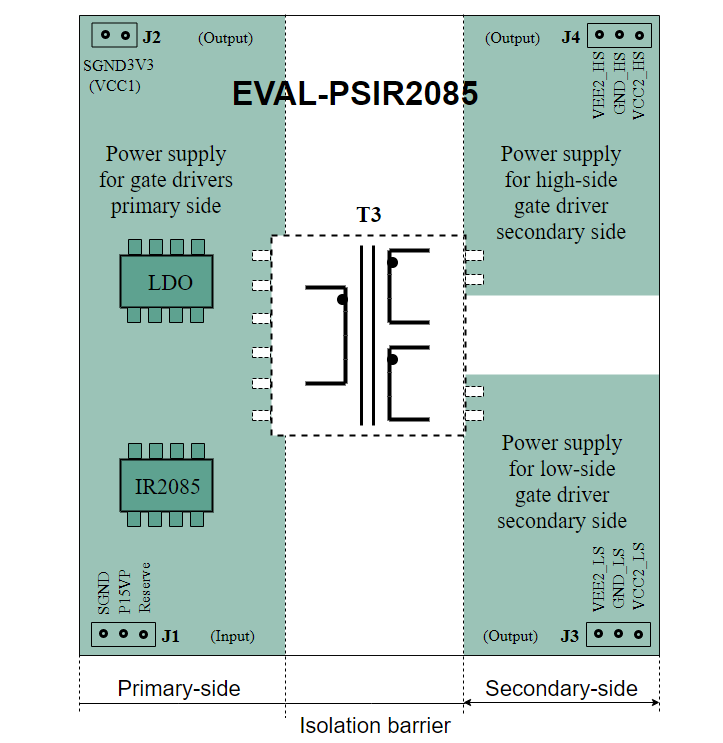

Two galvanically isolated power supplies
Power supply one for VCC1 (3.3 V) and GND for the primary side of the gate drivers
Power supply two with VCC2_HS, GND_HS, and VEE2_HS for the secondary side of the high-side gate driver
Power supply three with VCC2_LS, GND_LS, and VEE2_LS for the secondary side of the low-side gate driver
