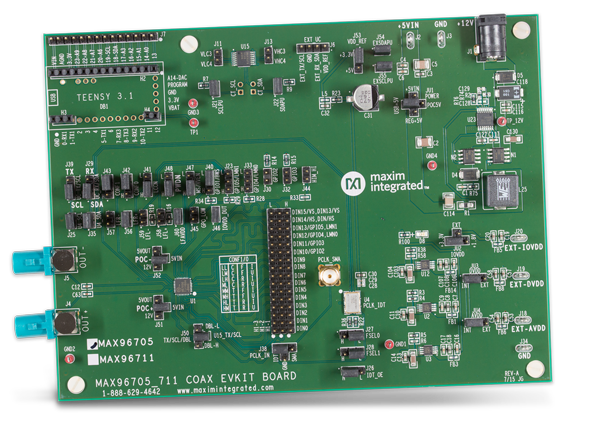

Analog Devices / Maxim Integrated MAX96705COAXEVKIT & MAX96711COAXEVKIT Eval Kits

Analog Devices MAX96705COAXEVKIT and MAX96711COAXEVKIT Evaluation Kits provide a proven design used to evaluate the MAX96705 and MAX96711. The MAX96705 and MAX96711 are high-bandwidth gigabit multimedia serial link (GMSL) serializers. These kits come with a spread spectrum and full-duplex control channel through the use of a standard FAKRA coax or STP cable. The Analog Devices MAX96705COAXEVKIT and MAX96711COAXEVKIT Evaluation Kits also include Windows-compatible software with a simple graphical user interface (GUI) for exercising features of the device. Each Evaluation Kit consists of a pre-installed MAX96705 or MAX96711 device.

Features

  • Accepts 16-bit parallel input data and outputs gmsl serial data through FAKRA connectors
  • Microsoft Windows compatible software
  • USB-controlled interface (cable included)
  • USB powered
  • Proven PCB layout
  • Fully assembled and tested

Required Equipment

  • MAX96705 or MAX96711 Serializer EV Kit
  • MAX96706 or MAX96708 Deserializer EV Kit
  • 2m FAKRA cable assembly (included with the┬ádeserializer EV kit)
  • >20MHz function generator
  • PC with Microsoft Windows and an available USB port
  • 5V DC, 500mA power supply

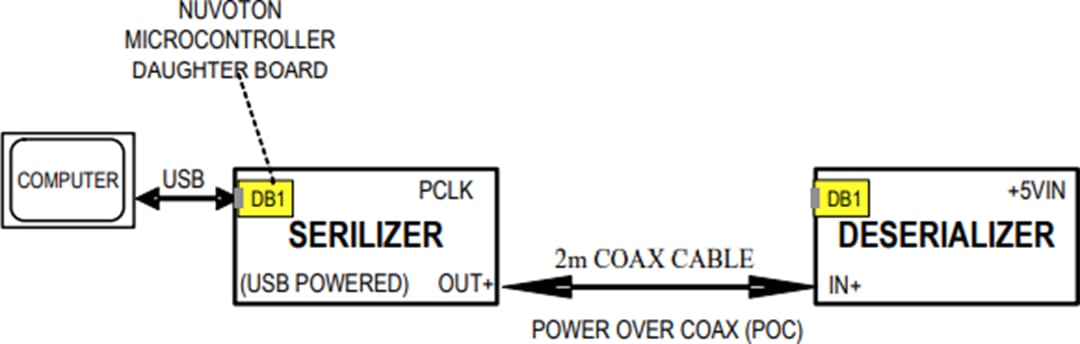

Setup Example

Analog Devices / Maxim Integrated MAX96705COAXEVKIT & MAX96711COAXEVKIT Eval Kits

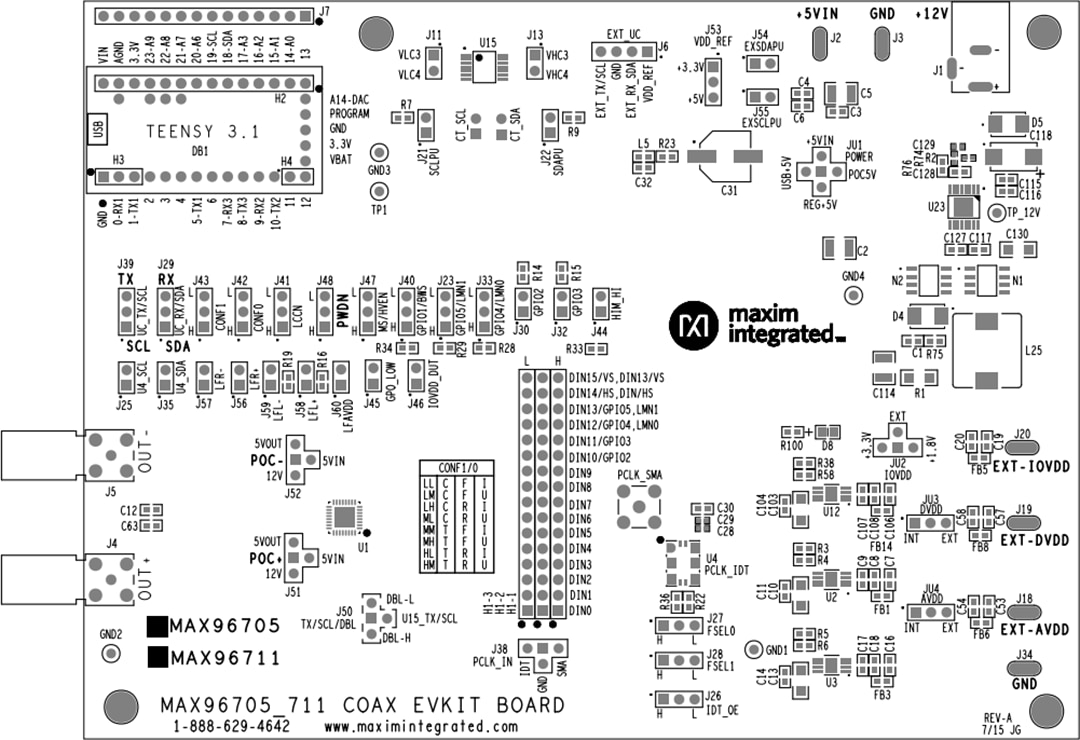

Board Layout

Analog Devices / Maxim Integrated MAX96705COAXEVKIT & MAX96711COAXEVKIT Eval Kits
Published: 2016-06-09 | Updated: 2023-04-19
